Offering > Stock Clearance

This item is available ex-stock, subject to prior sale.  Item condition: brand-new, unused, undamaged.
Please email sales@sanhat.com.pk or call 0333 454 1983 for further assistance, thank you.

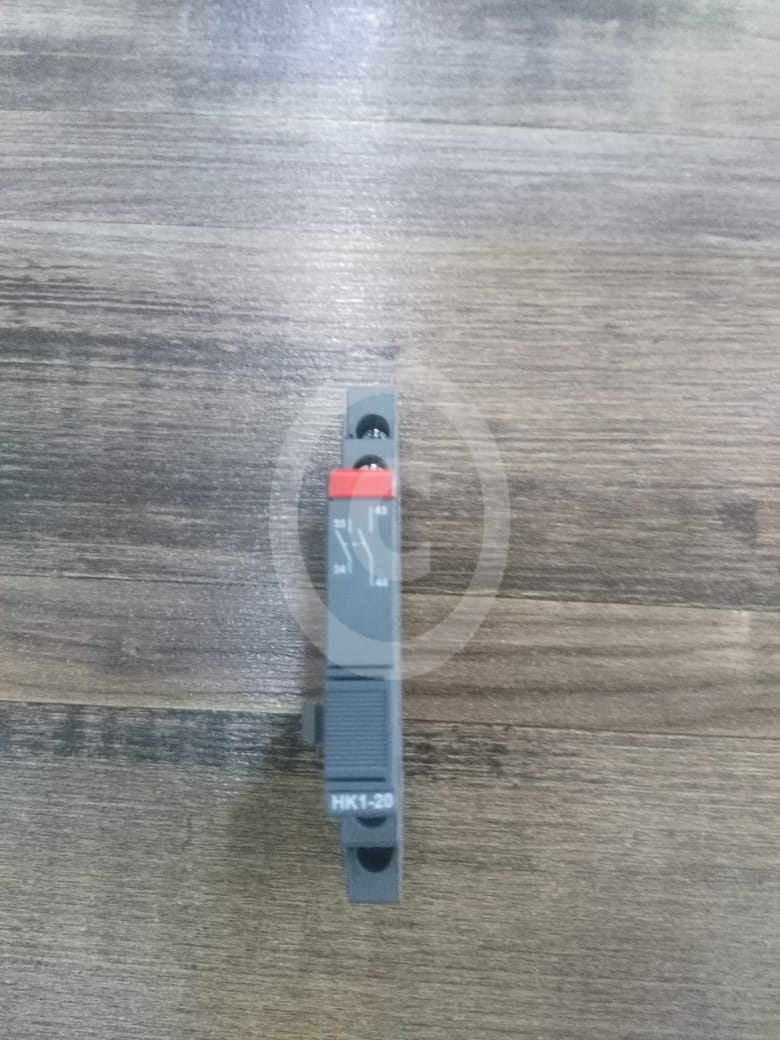

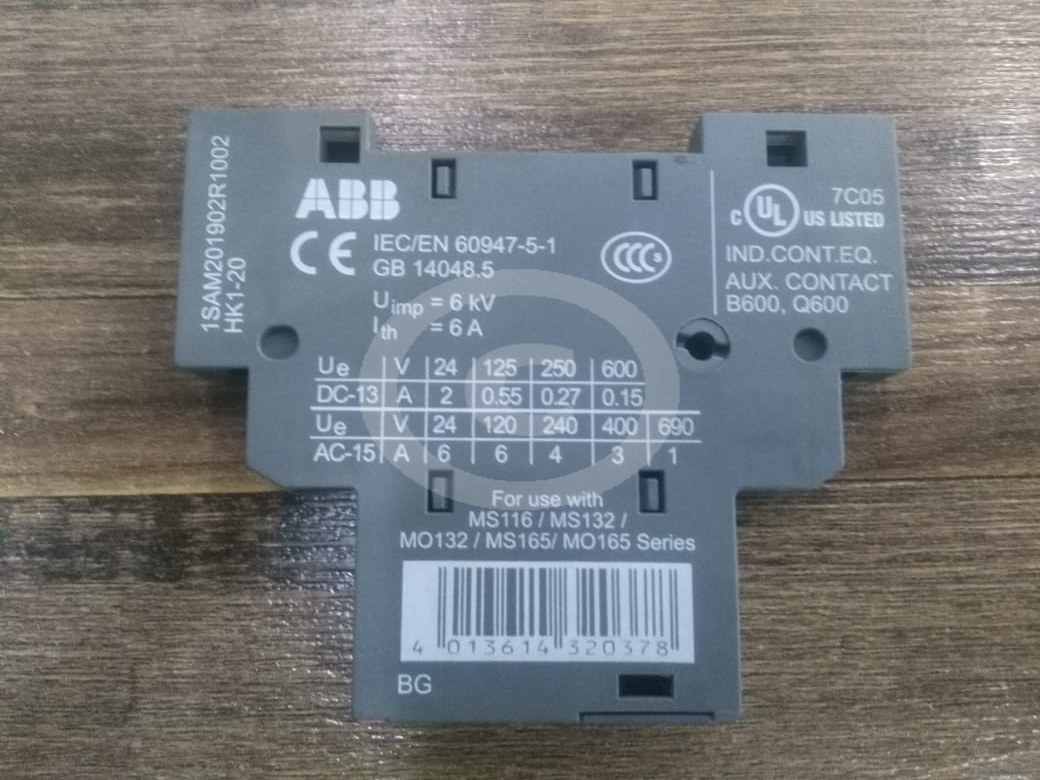

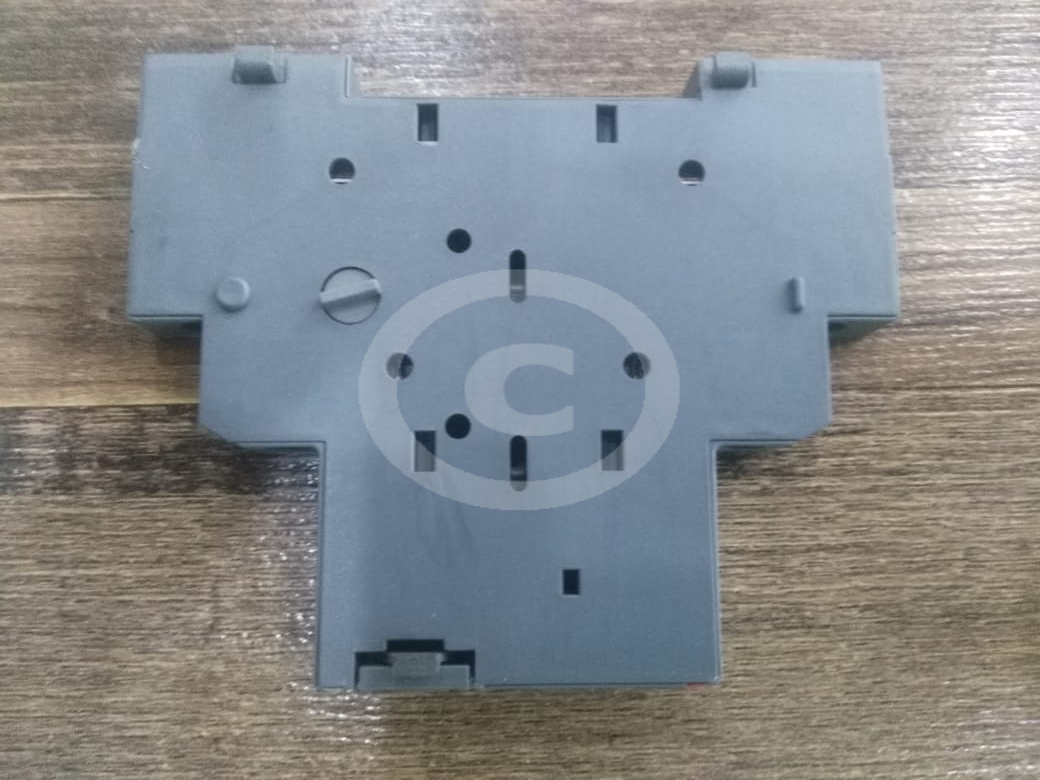

ABB Auxiliary Contact, 2NO, 2 Contact, Side Mount, 2 A dc, 6 A ac
Extended Product Type:HK1-20
Product ID:1SAM201902R1002
EAN:4013614320378
Catalog Description:HK1-20 Auxiliary Contact
Long Description:HK1-20 Aux.-contact 2 N
Make: ABB



Dimensions
Product Net Width:9 mm
Product Net Height:90 mm
Product Net Depth / Length:78.5 mm
Product Net Weight:0.035 kg
Technical
Terminal Type:Screw Terminals
Rated Operational Voltage:690 V AC
600 V DC
Main Circuit 690 V
Rated Operational Current AC-15 (Ie):(240 V) 4 A
(24 V) 6 A
(380 / 400 V) 3 A
(690 V) 1 A
Rated Operational Current DC-13 (Ie):(125 V) 0.55 A
(24 V) 2 A
(250 V) 0.27 A
(440 V) 0.15 A
(600 V) 0.15 A
Rated Impulse Withstand Voltage (Uimp):Auxiliary Circuit 6 kV
Rated Insulation Voltage (Ui):690 V
Degree of Protection:IP20
Electrical Durability:100000 cycle
Mechanical Durability:100000 cycle
Connecting Capacity Auxiliary Circuit:Flexible with Ferrule 1/2x 0.75 ... 1.5 mm²
Flexible with Insulated Ferrule 1/2x 0.75 ... 1.5 mm²
Flexible 1/2x 0.75 ... 1.5 mm²
Rigid 1/2x 1 ... 1.5 mm²
Tightening Torque:Auxiliary Circuit 0.8 ... 1.2 N·m
Wire Stripping Length:Auxiliary Circuit 8 mm
Recommended Screw Driver:M3
Pozidriv 2
Number of Auxiliary Contacts NO:2
Number of Auxiliary Contacts NC:0
Number of Auxiliary Contacts CO (SPDT):0
Standards:CSA 22.2 No. 14
IEC/EN 60947-1
IEC/EN 60947-5-1
UL 508
UL 60947-1
UL 60947-5-1
Product Name:Auxiliary Contact
Suitable For:MS116
MS132
MO132
MS165
MO165
Suitable for Product Class:Manual Motor Starter
Accessory Group:Electrical
Accessory Type:Auxiliary Contact
Technical UL/CSA
Maximum Operating Voltage UL/CSA:Main Circuit 600 V AC
Connecting Capacity Auxiliary Circuit UL/CSA:Flexible 1/2x 16-14 AWG
Stranded 1/2x 16-14 AWG
Tightening Torque UL/CSA:Auxiliary Circuit 7 in·lb
Contact Rating UL/CSA:B600
Q600
Environmental
Ambient Air Temperature:Operation -25 ... +60 °C
Storage -50 ... +80 °C
Resistance to Shock acc. to IEC 60068-2-27:11 ms Pulse 25g
Resistance to Vibrations acc. to IEC 60068-2-6:5g / 3 ... 150 Hz
